Andonstar AD409 Pro-Es 10.1 inch HDMI Digital Microscope with Endoscope Soldering Microscope
Andonstar AD409 Pro-Es 10.1 inch HDMI Digital Microscope with Endoscope Soldering Microscope
Impossible de charger la disponibilité du service de retrait
【High-quality metal lens and focusing barrel】Industrial-grade material, brings you an unparalleled focusing feel and a durable and solid product experience.
【Microscope with Endoscope all-around view 360°】Equipped with a endoscope for clear observation of the sides of components, the inside of pipes, etc., enabling 360° observation without dead angles.
【Professional HDMI digital microscope supports multiple output methods】Ultra-high definition 2160P Video Record, 10.1 inch IPS screen while supporting HDMI output, allows you to see a more microscopic world and free your eyes all the time. Professional digital microscope Supports multiple output methods：HDMI output, PC output ( endoscope not supported ), WIFI output.
【Soldering Microscope with Pro Metal Stand】Equipped with Andonstar's newest upgraded Pro bracket (size: 7*7.8*13inch), the angle of the bracket is adjustable front and rear, and it can be rotated 360° horizontally. The larger metal base plate and the higher working distance can meet your needs for repairing larger circuit boards. Strong metal material, suitable for high-temperature environments such as soldering.
【Unique UV filter design】The UV filter is equipped in front of the metal lens to block soldering heat, smoke, and dust to protect the lens, which is very suitable for soldering and maintenance professionals.
【8 Levels Adjustable LED Lights】2 metal base plate side lights, a total of 8 intensity levels of LED lights, the light body can be bent and the angle can be adjusted, which can meet your different requirements for image brightness and lighting angle to get the best image effect.
【Convenient Wireless Remote Control】It is convenient for you to operate from a long distance and supports functions such as image discoloration and digital zoom. It is especially suitable for demonstrations and other scenes. Easily take photos and videos, and avoid the shake that affects the picture quality caused by pressing the screen buttons.
【Professional Measurement Software】Simply download our professional measurement software, you can easily connect the microscope to your Windows PC to measure the length of objects, calculate the area, take photos, videos, etc.
【Easy to use, more than a microscope】 Easy to rotate the metal focusing wheel to focus, and rotate the bracket knob to fine-tune the working distance. Quickly access the wonderful micro world! With a Micro SD card, you can easily capture and store images or videos of the microscopic world you observe. (recommended to use class 10 high-speed memory card, up to 64G)
Andonstar newly upgraded pro metal stand
Larger base plate, higher working distance (7*7.8*13inch)
The angle of the bracket is adjustable front and rear.
The microscope host beam can be rotated 360° horizontally.
Microscope with Endoscope all-around view 360°
Equipped with an endoscope for clear observation of the sides of components, the inside of pipes, etc., enabling 360° observation without dead angles.
How to use the endoscope: Plug in the endoscope, and press 'NTL/PLA' on the remote to switch different lens images.
(*Endoscope does not support PC)
How to connect AD409-Pro to a Windows computer?
1. Follow the instructions to install the measurement software on a Windows computer.
2. Use the USB data cable (not the switch cable) to connect the digital microscope to the computer.
3. Choose the "PC camera" mode displayed on the microscope, open the measurement software and select the microscope device.

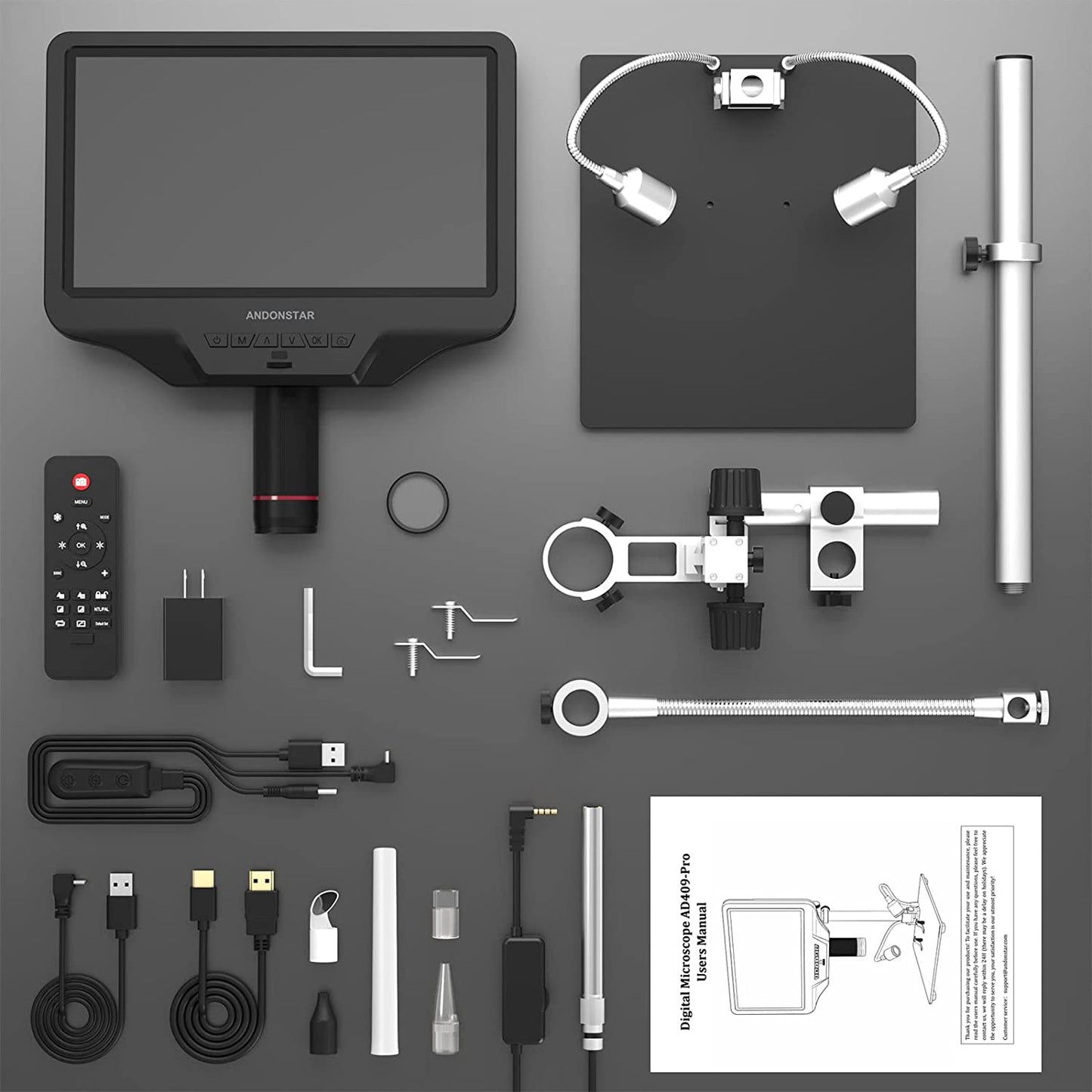

What you can get?
1. AD409 Microscope host, 2. Metal base plate 3. UV filter(assembled in front of the lens) 4. Remote control, 5. Power plug 6. Wrench, 7. Metal clips 8. Beam assembly, 9. Column 10. Endoscope adjustable arm 11. Switch cable, 12. USB cable 13. HDMI cable, 14. Endoscope accessories 15. Endoscope, 16. Instructions.
Dear ladies and gentlemen!
I would like to thank you very much for your sensitive understanding of my situation and for giving me the opportunity to purchase such a wonderful instrument as your microscope from you with the discount you gave me.
It is just a miracle, not a device. All of its functions work perfectly. Even places that are hard to see can be seen with the endoscope. The workmanship of all the components is good. I am simply invigorated after receiving your microscope. Now, even the smallest soldering jobs are no problem for me with my impaired vision.
Thank you very much again.
I hope that you will not stop there and will further improve your device.
Unfortunately, my budget will not allow me to enjoy your new achievements, but I will be very happy if you trust me to test your new products.
I remain your loyal fan.
Alexander Kanevskiy
This is very nice microscope for electronics. Good size, clear picture and good distance to work on pcb boards. The only downsize for me is the flex arm for extra loop. It should be more flex. It is really stiff and hard to set in position you require but apart of that, it is very good tool.
