Andonstar Microscope

Andonstar AD407 HDMI soldering Digital Microscope 7 inch LCD Screen Microscopes for Phone Repairing

Andonstar AD407 HDMI soldering Digital Microscope 7 inch LCD Screen Microscopes for Phone Repairing

Regular price $199.00
Regular price $399.00 Sale price $199.00
Sale Sold out

Product description:

Equipped with 4 megapixels HD sensor and industrial lens, Andonstar AD407 3D HDMI Digital Microscope features 7-inch adjustable screen, enabling users to view parts and components of the PCB clearly so as to improve the precision and efficiency of their soldering and repair work. Capable of capturing 1080(max 120f/s) images, the AD407 digital microscope can provide clear images with a deep depth of field under a high object distance. Its UV filter is able to protect the lens from oil and heat during the soldering process. Besides, it features HDMI output enabling the microscope to be connected with external monitors, giving you the unexpected experience of viewing and photographing. Besides, it has a height-adjustable stand that can be moved backward and forward, providing enough soldering working space and allowing you to view better the soldering components. In all, this 7-inch digital microscope is perfect for jewelry appraisal, antique authentication, soldering, repairing, popularization of science, and other applications.


With a 7-inch adjustable LCD screen to present clear images of the object
An excellent image processing system for better viewing, monitoring, and documentation
With UV filter protecting the lens from harmful substance and extending the working life of the product
1080P( max 120f/s) HD capability and HDMI video output for high-quality images output
High object distance to help to produce images with a deep depth of field

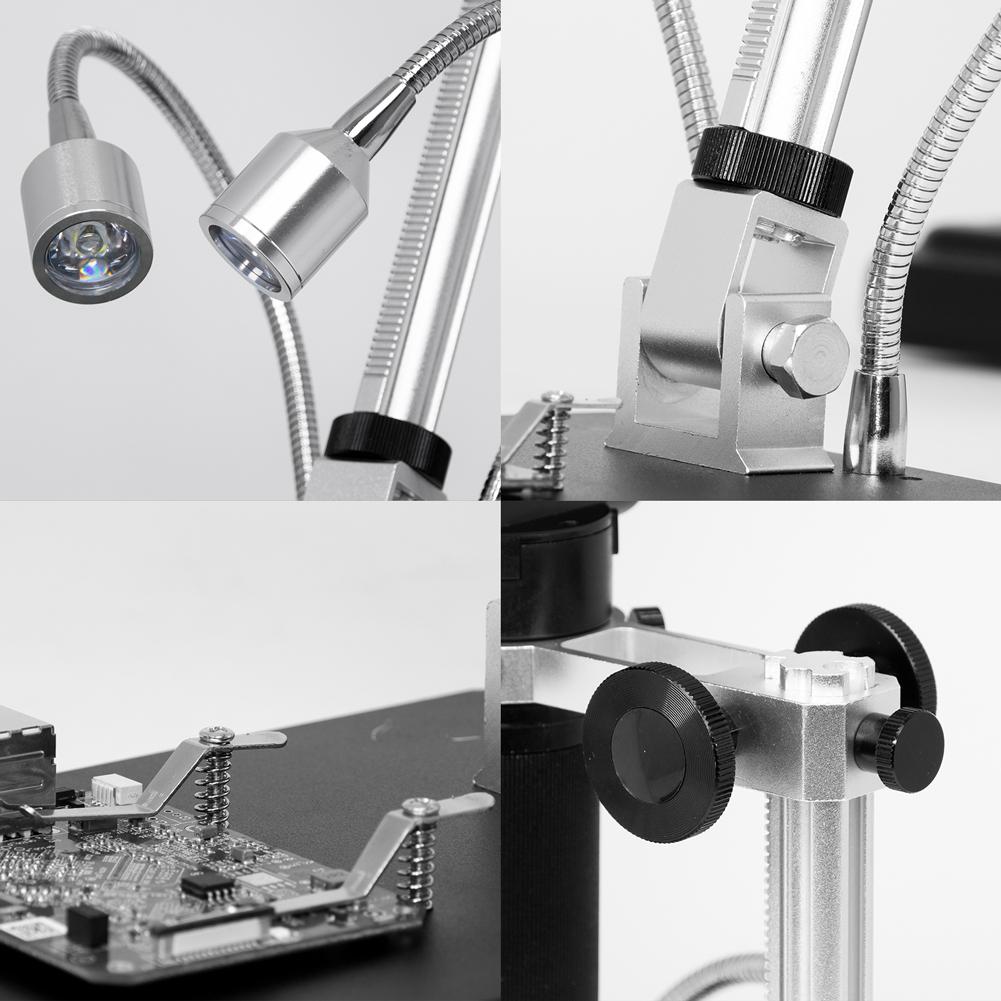

Height-adjustable metal stand able to be moved backward and forward, providing enough soldering working space.


Image sensor: 4 megapixels HD sensor
Video output: UHD2880x2160 24FPS; FHD1920x1080 60FPS/30FPS; HD1280x720 120FPS;
Video format: MP4; real-time play via HDMI w/o recording;
Magnification: Up to 270 times (HDMI monitor 27 inches)
Photo resolution: Max 4032x3024 (12M 4032*3024)
Photo format: JPG
Focus range: Minimum 5cm
Frame rate: Max 120f/s (600 Lus brightness &HDP120)

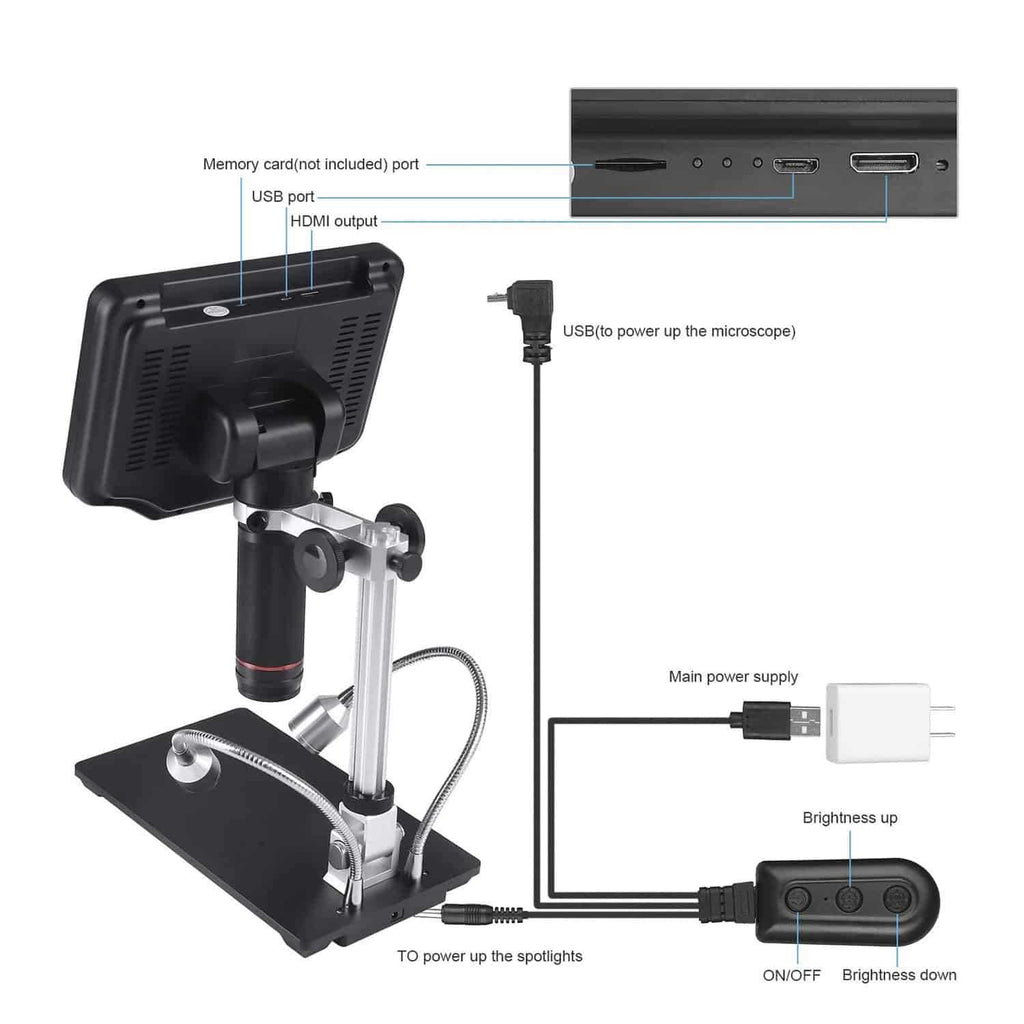

Video-output: HDMI
Storage: Microscope-SD card, Up to 32G
Pc support: NO
Power source: 5V DC
Light source: 2 LED with the stand
Screen size: 7 inch
Stand size: 20cm*12cm*19cm
Certification: CE/FCC/ROHS/HDMI
Packaging data: 32*22*10cm/1.6kg
Warranty: 1 year

Package contents:

Microscope x1
Stand x1
HDMI cable x1
Switch Cable x1
UV Filter x1
IR-Remote x1(not included the battery)
Adapter x1
Users Manual x1


1-year warranty.

Any questions, please contact us directly, we will spare no efforts to help you. Thanks.

Shipping and handling:

All products purchased from Andonstar will be despatched either the same day or the next day of your order being received during working days. We have overseas warehouses all around the world. Usually, we will choose the closest warehouse to deliver the parcel to you, except for special cases. Delivery can be expected within 5-9 working days if the product is dispatched from overseas warehouses. In the other case, if the item is sent from the Shenzhen warehouse, the delivery time will be within 15 days.


We truly believe we have some of the best products in the world. If you don't have a positive experience for ANY reason, we will do WHATEVER it takes to make sure you are 100% satisfied with your purchase.

Buying items online can be a daunting task, so we want you to realize that there are absolutely ZERO risks in buying something and trying it out. If you don't like it, no hard feelings we'll make it right.

We have 24/7/365 Ticket and Email Support. Please contact us if you need assistance.

View full details

Customer Reviews

Based on 11 reviews
Jesse Ahonen
Good quality

Good picrure quality, easy to use, simple adjustments. I use this for electrical repairs and its perfect for smd works. Easy to setup before use, just bring it to table and plug in. Screen is big enough to see everything well and if not you can connect it to external monitor.

Martin Johnsson
Top level

Im very satisfied , im using it for watch-Making/ Service / Oiler-help. Feels professional. I have 0 regrets yet

Robert T.
Perfect for SMD re-work

Came packaged great and in good working order. Perfect for SMD work on PCB's. Was able to quickly spot a bridge that there was no way my eye was gonna see it. I don't honestly solder through it, as much as I use it to check my work. Recommend to anyone doing this kind of work.

Easy to use, only one zoom for each item however

Overall, I am very happy with this product. The picture quality is excellent, the construction sturdy, and learning to use it a breeze. I would certainly purchase from this company again. The only complaint I have is that you do not have a range of magnification options. Although through adjusting the focus and height of the camera tower you can focus well, there is generally only one level of 'zoom' which works for each item. All other combos are completely fuzzy. It is not like a normal microscope where you can see something at 15x or 30x. You play around, and eventually, find the height/focus combo that provides you a clear image.

Good quality for the price

Although this digital microscope is not being used for phone repair it is clear that the quality of image and level of magnification in use match how it is described by the company. The microscope is primarily used to evaluate knife blade damage prior to sharpening, and the burr and scratch patterns while sharpening. Highly satisfied.
